Garancija:
24 months (2 years)
Brand:
ASUS
Procesorsko ležište (socket):
AMD® AM4
Čipset:
AMD B550
Maksimalna ukupna memorija:
128GB
Tip memorije:
DDR4
Memorijski slotovi:
4x DDR4
Opis memorije:
4800(O.C.)/4666(O.C.)/4600(O.C.)/4400(O.C.)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz
Grafika:
Integrisani graficki procesor
PCI Express x16 slot:
1x PCI Express 3.0, 1x PCI Express 4.0
PCI Express x1 slot:
3x PCI Express 3.0
SATA priključci:
6x SATA III, 2x M.2
Audio:
Broj kanala 8 (7.1)
Model Creative® SupremeFX
Model Creative® SupremeFX
Back I/O Ports:
2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C®)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports
1 x Wi-Fi Module
1 x DisplayPort
1 x HDMI® port
1 x Intel® I225-V 2.5G Ethernet
1 x Optical S/PDIF out
5 x Audio jacks
1 x BIOS FlashBackTM button
4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports
1 x Wi-Fi Module
1 x DisplayPort
1 x HDMI® port
1 x Intel® I225-V 2.5G Ethernet
1 x Optical S/PDIF out
5 x Audio jacks
1 x BIOS FlashBackTM button
Internal I/O Ports:
Fan and cooling related
1 x 4-Pin AIO_Pump header
1 x 4-Pin CPU fan header
1 x 4-Pin CPU_OPT fan header
3 x 4-Pin Chassis fan headers
Power related
1 x 24-pin main power connector
1 x 8-pin +12V power connector
1 x 4-pin +12V power connector
Storage related
2 x M.2 slots (Key M)
6 x SATA 6Gb/s ports
USB ports
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
1 x Addressable Gen 2 header
2 x AURA RGB headers
1 x Clear CMOS header
1 x Front panel audio header (AAFP)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thermal sensor header
1 x Thunderbolt™ header
1 x 4-Pin AIO_Pump header
1 x 4-Pin CPU fan header
1 x 4-Pin CPU_OPT fan header
3 x 4-Pin Chassis fan headers
Power related
1 x 24-pin main power connector
1 x 8-pin +12V power connector
1 x 4-pin +12V power connector
Storage related
2 x M.2 slots (Key M)
6 x SATA 6Gb/s ports
USB ports
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
1 x Addressable Gen 2 header
2 x AURA RGB headers
1 x Clear CMOS header
1 x Front panel audio header (AAFP)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thermal sensor header
1 x Thunderbolt™ header
Wi-Fi:
2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
LAN:
Intel®
Žična mreža (LAN):
10/100/1000/2500 Mbps (2.5GbE)
RAID:
RAID 0, RAID 1, RAID 10
Format:
ATX
Ostalo:
Bluetooth™ verzija 5.2

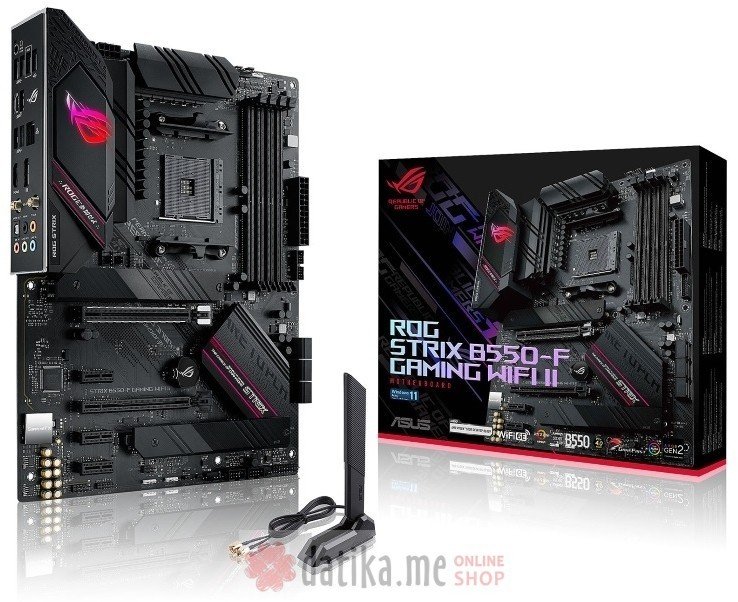

ROG STRIX B550-F GAMING WIFI II
AMD B550 Ryzen AM4 Gaming ATX motherboard with PCIe® 4.0, 12+2 teamed power stages, Intel® 2.5 Gb Ethernet, WiFi 6E, Two-Way AI Noise Cancelation, dual M.2 slots with heatsinks, SATA 6 Gbps, USB 3.2 Gen 2 and Aura Sync RGB lighting
- AM4 socket: Ready for AMD Ryzen™ 3000 and 5000 series, plus 5000 and 4000 G-series desktop processors
- Best gaming connectivity: PCIe® 4.0-ready, dual M.2 slots, USB 3.2 Gen 2 Type-C®, plus HDMI® 2.1 and DisplayPort™ 1.2 output
- Smooth networking: On-board WiFi 6E (802.11ax) and Intel® 2.5 Gb Ethernet with ASUS LANGuard
- Robust power solution: 12+2 teamed power stages with ProCool power connector, high-quality alloy chokes and durable capacitors
- Renowned software: Intuitive dashboards for UEFI BIOS and ASUS AI Networking for easy configuration
- DIY-friendly design: Includes pre-mounted I/O shield, BIOS FlashBack™, Q-LEDs and SafeSlot
- Unmatched personalization: ASUS-exclusive Aura Sync RGB lighting, including Aura RGB and addressable Gen 2 RGB headers
- Industry-leading gaming audio: Two-Way AI Noise Cancelation, SupremeFX S1220A codec, DTS® Sound Unbound™ and Sonic Studio III for immersive sound
