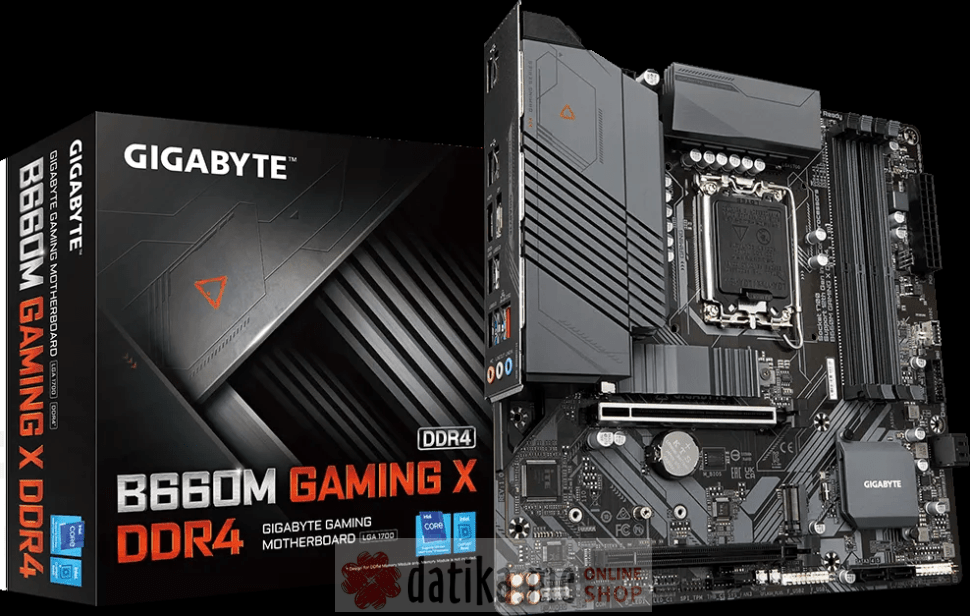

Gigabyte B660M GAMING X D4 in Podgorica Montenegro

Articul: B660M GAMING X D4

This product is not available for purchase

154
How to buy? You can only make a purchase online by clicking the "Add to cart" or "Buy now" button. All products available for ordering - we have them in stock.
Delivery is made according to the following schedule, after ordering and confirmation by the operator:

Categories: Motherboards

Intel® B660 GAMING Motherboard with 8+1+1 Phases Hybrid Digital VRM Design*, Fully Covered Thermal Design, 2 x PCIe 4.0 M.2 with Thermal Guard, 2.5GbE LAN, USB 3.2 Gen 1 Type-C®, RGB FUSION 2.0, Q-Flash Plus

  • Supports 12th Gen Intel® Core™ Series Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
  • 8+1+1 Hybrid Digital VRM Design with DrMOS*
  • Fully Covered Thermal Design with High Coverage VRM Heatsinks
  • Fast 2.5 GbE GAMING LAN with Bandwidth Management
  • Dual Ultra-Fast NVMe PCIe 4.0 x4 M.2 with Thermal Guard
  • USB 3.2 Gen 2 Type-C® for Fast and Versatile Connections
  • Pre-installed IO Shield for easy and quick installation
  • High Quality Audio Capacitors and Audio Noise Guard
  • RGB FUSION 2.0 supports Addressable LED & RGB LED Strips
  • Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
Brand Gigabyte
Procesorsko ležište (socket) Intel® 1700
Čipset Intel® B660
Maksimalna ukupna memorija 128GB
Tip memorije DDR4
Memorijski slotovi 4x DDR4
PCI Express x16 slot 1x PCI Express 4.0
SATA priključci (ukupno) 1 x M.2 Socket 3, 4 x SATA 6Gb/s ports
Audio Realtek® audio codec
High Definition Audio
2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.
Support for S/PDIF Out
Back I/O Ports 3 x USB 3.2 Gen 1 ports
5 x USB 2.0/1.1 ports
1 x HDMI 2.1 port
1 x DisplayPort
1 x RJ-45 port
3 x audio jacks
Internal I/O Ports 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
3 x system fan headers
2 x addressable LED strip headers
2 x RGB LED strip headers
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x S/PDIF Out header
2 x Thunderbolt™ add-in card connectors
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x serial port header
1 x reset button
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper
LAN 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Format microATX
Ostalo iTE® I/O Controller Chip
Garancija 3 godine
