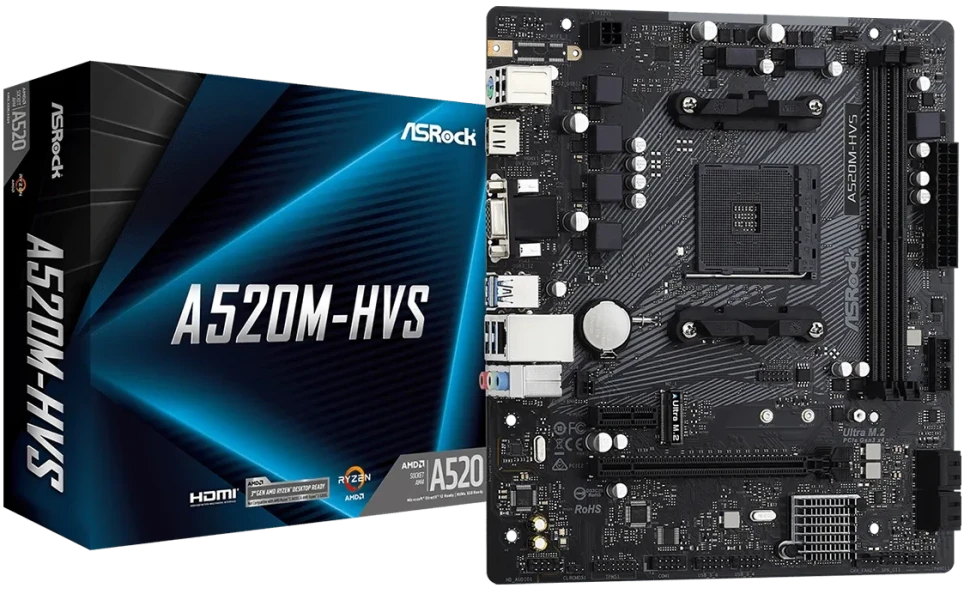

ASRock A520M-HVS
ASRock A520M-HVS
How to buy?
You can only make a purchase online by clicking the "Add to cart" or "Buy now" button.
All products available for ordering - we have them in stock.
Delivery
is made according to the following schedule, after ordering and confirmation by the operator:
Categories: Motherboards
A520M-HVS
- Supports AMD AM4 Socket Ryzen™ 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors
- 6 Phase Power Design
- Supports DDR4 4733+ (OC)
- 1 x PCIe 3.0 x16, 1 x PCIe 3.0 x1
- Graphics Output Options: D-Sub, HDMI
- 7.1 CH HD Audio (Realtek ALC887 Audio Codec)
- 4 x SATA3, 1 x Ultra M.2(Gen3 x4 & SATA3)
- 6 x USB 3.2 Gen1(4 x Rear, 2 x Front)
6 x USB 2.0(2 x Rear, 4 x Front) - Realtek Gigabit LAN
| Garancija (Warranty) | 24 months (2 years) |
| Brand | ASRock |
| Procesorsko ležište (socket) | AMD® AM4 |
| Čipset | AMD A520 |
| Maksimalna ukupna memorija | 64GB |
| Tip memorije | DDR4 |
| Memorijski slotovi | 2x DDR4 |
| Opis memorije | support DDR4 4600+(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 |
| Grafika | Integrisani graficki procesor |
| PCI Express x16 slot | 1 x PCI Express 4.0 (x16 mode) |
| PCI Express x1 slot | 1x PCI Express 3.0 |
| SATA priključci | 4x SATA III, 1x M.2 |
| Audio |
- 7.1 CH HD Audio (Realtek ALC887/897 Audio Codec) - Supports Surge Protection |
| Back I/O Ports |
- 1 x PS/2 Mouse/Keyboard Port - 1 x D-Sub Port - 1 x HDMI Port - 2 x USB 2.0 Ports (Supports ESD Protection) - 4 x USB 3.2 Gen1 Ports (Supports ESD Protection) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jacks: Line in / Front Speaker / Microphone |
| Internal I/O Ports |
- 1 x SPI TPM Header - 1 x COM Port Header - 1 x Chassis Intrusion and Speaker Header - 1 x CPU Fan Connector (4-pin)* - 2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)** - 1 x 24 pin ATX Power Connector - 1 x 4 pin 12V Power Connector - 1 x Front Panel Audio Connector - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) *The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. **The Chassis Fan supports the water cooler fan of maximum 1A (12W) fan power. CHA_FAN2 can auto detect if 3-pin or 4-pin fan is in use. |
| LAN | Realtek RTL8111H |
| Žična mreža (LAN) | 10/100/1.000Mbps (Gigabit ethernet) |
| RAID | RAID 0, RAID 1, RAID 10 |
| Format | microATX |
| Ostalo |
Form Factor - Micro ATX Form Factor: 9.0-in x 7.9-in, 23.0 cm x 20.1 cm - Solid Capacitor design OS - Microsoft Windows® 10 64-bit / 11 64-bit |
