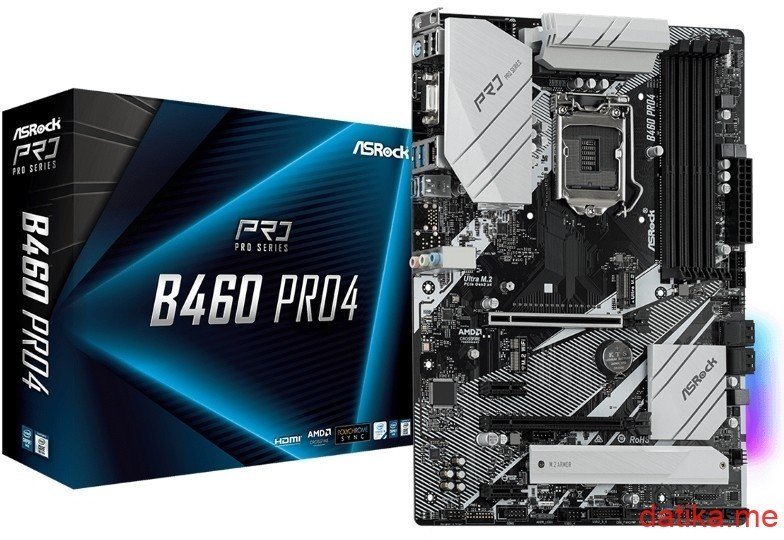

ASRock B460 PRO4
ASRock B460 PRO4
Articul: PLO03083
This product is not available for purchase
We don't have the information when the item will be available again, so we suggest you to have a look at the offer of similar products available on our web site: Motherboards
115 €
B460 Pro4
- Supports 10th Gen Intel® Core™ processors (Socket 1200)
- 9 Power Phase Design
- Supports DDR4 2933MHz
- 2 PCIe 3.0 x16, 2 PCIe 3.0 x1, 1 M.2 (Key E) For WiFi
- AMD CrossFireX.
- Graphics Output Options: HDMI, D-Sub
- 7.1 CH HD Audio (Realtek ALC1200 Audio Codec), Nahimic Audio
- 6 SATA3, 1 Ultra M.2 (PCIe Gen3 x4 & SATA3), 1 Ultra M.2 (PCIe Gen3 x4)
- 8 USB 3.2 Gen1 (4 Front, 3 Rear, 1 Rear Type-C)
- Intel® Gigabit LAN
| Originalni proizvodi | Proizvod je uvezen u Crnu Goru od strane proizvođača ili ovlašćenog distributera brenda. |
| Garancija (Warranty) | 24 months (2 years) |
| Brand | ASRock |
| Procesorsko ležište (socket) | Intel® 1200 |
| Čipset | Intel® B460 |
| Maksimalna ukupna memorija | 128GB |
| Tip memorije | DDR4 |
| Memorijski slotovi | 4x DDR4 |
| Opis memorije | 2.133MHz, 2.400MHz, 2.666MHz, 2.800MHz, 2.933MHz |
| Grafika | Bez grafike |
| PCI Express x16 slot | 2x PCI Express 3.0 |
| PCI Express x1 slot | 2x PCI Express 3.0 |
| SATA priključci (ukupno) | 2 x M.2 Socket 3 |
| SATA priključci | 6x SATA III |
| Audio |
Audio Broj kanala 8 (7.1) Model Realtek® Napomena Nahimic Audio, PCB izolacija, Premium Blu-ray audio podrška, Zaštitna od strujnog udara |
| Ukupno USB priključaka | 6 |
| Back I/O Ports |
- 1 x Antenna Bracket - 1 x PS/2 Mouse/Keyboard Port - 1 x D-Sub Port - 1 x HDMI Port - 3 x USB 3.2 Gen1 Type-A Ports (Supports ESD Protection) - 1 x USB 3.2 Gen1 Type-C Port (Supports ESD Protection) - 2 x USB 2.0 Ports (Supports ESD Protection) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jacks: Line in / Front Speaker / Microphone |
| Internal I/O Ports |
- 1 x COM Port Header - 1 x SPI TPM Header - 1 x Chassis Intrusion and Speaker Header - 2 x RGB LED Headers* - 2 x Addressable LED Headers** - 1 x CPU Fan Connector (4-pin)*** - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** - 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector - 1 x Front Panel Audio Connector - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 3 AIC R2.0 Card only) - 2 x USB 2.0 Headers (Supports 3 USB 2.0 ports) (Supports ESD Protection) - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection) Napomena Za iskorišćavanje određenih internih konektora potrebni su dodatni bracket-i ili priključci na kućištu |
| HDMI priključci | 1x HDMI |
| D-SUB (VGA) | 1xD-Sub |
| PS2 | combined 1 komad keyboard (purple) mouse (green) |
| Žična mreža (LAN) | 10/100/1.000Mbps (Gigabit ethernet) |
| RAID | Intel® Rapid Storage Technology 13, RAID 0, RAID 1, RAID 5, RAID 10 |
| Format | ATX |
