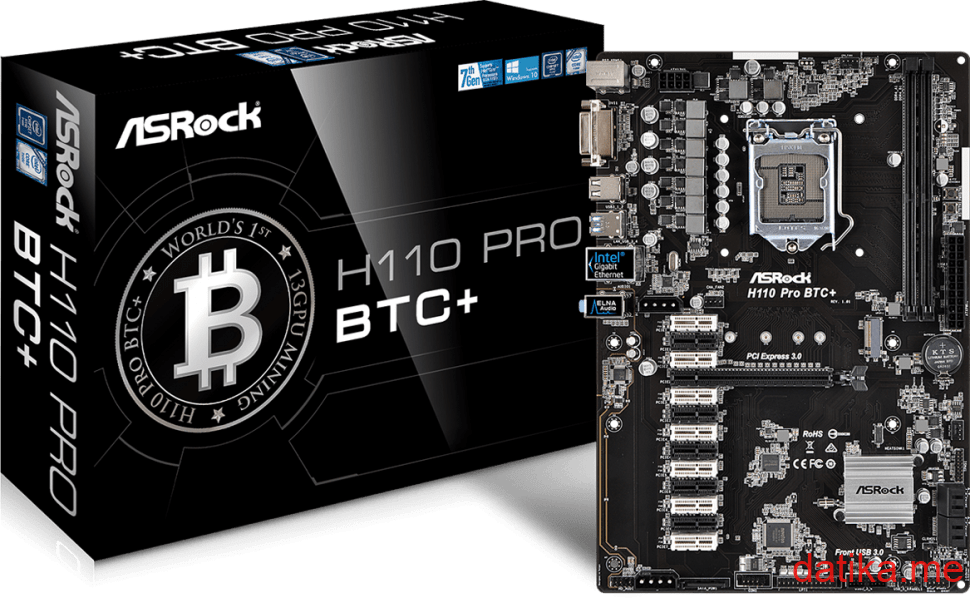

ASRock H110 Pro BTC+ (Mining model)
ASRock H110 Pro BTC+ (Mining model)
Articul: 90-MXB5S0-A0UAYZ
This product is not available for purchase
We don't have the information when the item will be available again, so we suggest you to have a look at the offer of similar products available on our web site: Motherboards
252 €
- ASRock Super Alloy
- Supports 7th and 6th Generation Intel® Core™ i7 / i5 / i3 / Pentium® / Celeron® Processors* 8th and 9th Gen Intel® Core™ desktop processors are supported with Intel® 300 Series chipset motherboards only
- Supports DDR4 2400/2133
- 1 PCIe 3.0 x16, 12 PCIe 2.0 x1
- Graphics Output: DVI-D
- 7.1 CH HD Audio (Realtek ALC887 Audio Codec), ELNA Audio Caps
- 4 SATA3, 1 M.2 (SATA3)
- 4 USB 3.1 Gen1 (2 Front, 2 Rear)
- Intel® Gigabit LAN
- Onboard Power On / Reset Button
| Originalni proizvodi | Proizvod je uvezen u Crnu Goru od strane proizvođača ili ovlašćenog distributera brenda. |
| Garancija (Warranty) | 24 months (2 years) |
| Brand | ASRock |
| Procesorsko ležište (socket) | Intel® 1151 |
| Čipset | Intel® H110 Express |
| Maksimalna ukupna memorija | 32GB |
| Tip memorije | DDR4 |
| Memorijski slotovi | 2x DDR4 |
| Opis memorije | ual Channel DDR4 Memory Technology - 2 x DDR4 DIMM Slots - Supports DDR4 2400 / 2133 non-ECC, un-buffered memory* - Supports ECC UDIMM memory modules (operate in non-ECC mode) - Max. capacity of system memory: 32GB* - Supports Intel® Extreme Memory Profil |
| PCI Express x16 slot | 1x PCI Express x16 slot 3.0 |
| PCI Express x1 slot | 12x PCI Express 3.0 |
| SATA priključci (ukupno) | 1 x M.2 Socket 3 |
| SATA priključci | 4x SATA III |
| Audio |
7.1 CH HD Audio (Realtek ALC887 Audio Codec)* - Supports Surge Protection - ELNA Audio Caps |
| Ukupno USB priključaka | 6 |
| USB 2.0 priključci | 4 |
| USB 3.2 priključci | 2 x USB 3.1 Gen1 Ports (Supports ESD Protection) |
| Back I/O Ports |
1 x PS/2 Mouse Port - 1 x PS/2 Keyboard Port - 1 x DVI-D Port - 4 x USB 2.0 Ports (Supports ESD Protection) - 2 x USB 3.1 Gen1 Ports (Supports ESD Protection) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jacks: Line in / Front Speaker / Microphone |
| Internal I/O Ports |
1 x Print Port Header - 1 x COM Port Header - 1 x TPM Header - 1 x Chassis Intrusion and Speaker Header - 1 x CPU Fan Connector (4-pin)* - 2 x Chassis Fan Connectors (4-pin) - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector - 2 x PCIe Power Connectors-1 x SATA Power Connector - 1 x Front Panel Audio Connector - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) - 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection) |
| DVI-D priključci | 1xDVI-D |
| PS2 | keyboard (purple), mouse (green) |
| LAN | Gigabit LAN 10/100/1000 Mb/s - Giga PHY Intel® I219V - Supports Wake-On-LAN (Supported on Black PCIe Slots only) - Supports Lightning/ESD Protection - Supports Energy Efficient Ethernet 802.3az - Supports PXE |
| Format | ATX |
