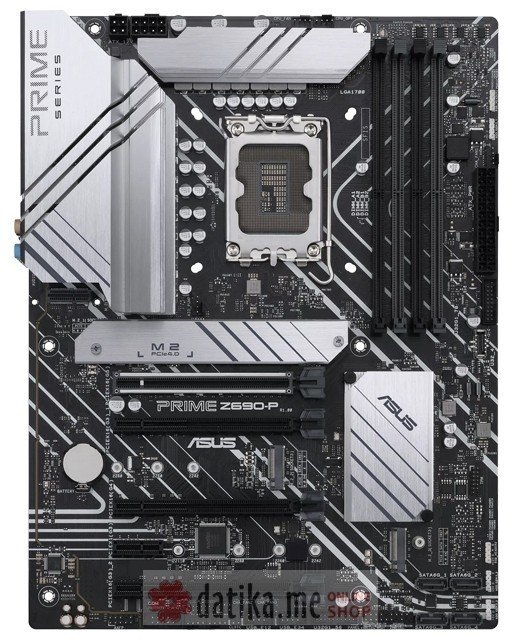

Asus PRIME Z690-P
Asus PRIME Z690-P
Articul: PLO03268
This product is not available for purchase
We don't have the information when the item will be available again, so we suggest you to have a look at the offer of similar products available on our web site: Motherboards
253 €
Intel® Z690 (LGA 1700) ATX motherboard with PCIe® 5.0, DDR5, three M.2 slots, 14+1 DrMOS, HDMI®, DisplayPort™, 2.5 Gb Ethernet, USB 3.2 Gen 2x2 Type-C®, front USB 3.2 Gen 1 Type-C®, Thunderbolt™ 4 header and Aura Sync RGB lighting
- Intel® LGA 1700 socket: Ready for 13th & 12th gen Intel® processors
- Enhanced power solution: 14+1 DrMOS, 8+4 pin ProCool connector, alloy chokes and durable capacitors for stable power delivery
- Comprehensive cooling: Large VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 4
- ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking
- Next-gen connectivity: DDR5, PCIe® 5.0, 2.5 Gb Ethernet, USB 3.2 Gen 2x2 Type-C®, front panel USB 3.2 Gen 1 Type-C®, Thunderbolt™ 4 header support
| Originalni proizvodi | Proizvod je uvezen u Crnu Goru od strane proizvođača ili ovlašćenog distributera brenda. |
| Garancija (Warranty) | 24 months (2 years) |
| Brand | ASUS |
| Procesorsko ležište (socket) | Intel® 1700 |
| Čipset | Intel® Z690 |
| Maksimalna ukupna memorija | 128GB |
| Tip memorije | DDR5 |
| Memorijski slotovi | 4xDDR5 |
| Opis memorije | DDR5 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 Non-ECC |
| Grafika | Integrisani graficki procesor |
| PCI Express x16 slot | 2x PCI Express 3.0 (x4 mode), 1x PCI Express 5.0/4.0/3.0, 1x PCI Express 4.0/3.0 (x4 mode) |
| PCI Express x1 slot | 1x PCI Express 3.0 |
| SATA priključci | 4x SATA III, 3 x M.2 |
| Audio |
Broj kanala 8 (7.1) Model Realtek® Napomena Audio Shielding |
| Back I/O Ports |
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 1 x USB 3.2 Gen 2 port (1 x Type-A) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI® port 1 x V-M.2 slot (Key E) 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port 1 x PS/2 Keyboard/Mouse combo port |
| Internal I/O Ports |
Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 2 x AURA RGB headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x SPI TPM header (14-1pin) 1 x 20-5pin System Panel header 1 x Thunderbolt™ header |
| LAN | 1 x Realtek 2.5Gb Ethernet |
| Žična mreža (LAN) | 10/100/1000/2500 Mbps (2.5GbE) |
| RAID | RAID 0, RAID 1, RAID 5, RAID 10 |
| Format | ATX |
| Ostalo | Podržane tehnologije Aura Lighting Control |
