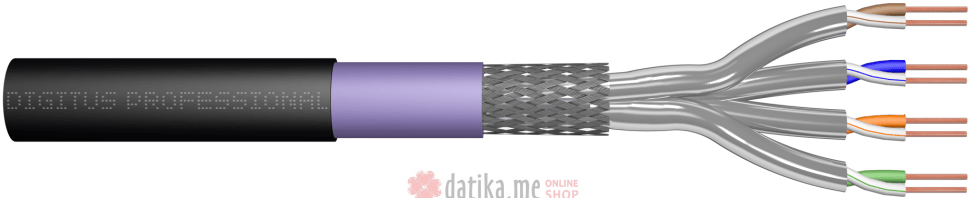

DIGITUS Cat.7 S/FTP burial installation cable, 1000 m, simplex, PE
Product number: DK-1741-VH-10-OD
EAN: 4016032354130
CAT 7 S-FTP outdoor installation cable, 600 MHz PE, inner Eca (LSZH), AWG 23/1,1000m, sx, bl&pu
Future-oriented standards and high-end quality for your network.
- 10GBit Ethernet
- 600 MHz transmission frequency
- Permanent link certified
- PoE Power over Ethernet support
- PE outer jacket, CPR class Eca inner jacket
| Garancija (Warranty) | 24 months (2 years) |
| Brand | Digitus |
| Tip kabla | Mrežni kabl |
| Karakteristike |
Physical properties: Conductor: Bare annealed copper, solid AWG 23/1 Insulation: SFS-PE (Foam-Skin Polyethylene) Total number of insulated conductors: 8, twisted in 4 pairs Color code: Blue-white, orange-white, green-white, brown-white Individual pair shielding: Aluminum foil, providing 100 % coverage Overall shielding: Copper wire braid Outer sheath: PE (Polyethylene); UV resistant Outer sheath diameter (nominal): 0.50 mm nominal Outer sheath color: Black (RAL 9005) Mechanical properties: Tensile loading: 150N max. Dynamic bending radius: 8x AD mm min. Static bending radius: 4x AD mm min. Shipping- and storage temperature range: -20 °C up to +60 °C Operating temperature range: -50 °C up to +60 °C Installation temperature range: 0 °C up to +60 °C Overall diameter Simplex (nominal): 8.5 mm nominal (Eca) Weight (kg/km): 66.5 kg/km Electrical properties: Impedance: 100±5 Ohm @ 4-100 MHz; 100±25 Ohm @ 100-600 MHz Capacitance: 45 pF/m nominal @ 1 KHz Capacitance unbalance (pair-ground): 1.6 pF/m max. @ 1 KHz Insulation resistance: 5 GOhm x km min. DC resistance: 95 Ohm/km max. (2% max. resistance unbalance) DC loop resistance: 190 Ohm/km max. (2% max. resistance unbalance) Voltage resistance: 72 Vdc max. Coupling attenuation: CA-Type 1b Signal propagation delay: 450 nS/100 m max. Delay difference: 10 nS/100 m max. Separating class: “d” acc. to EN 50174-2 NVP: 79% Assortment: Twisted Pair Installation Cables Category: CAT 7 Shielding: S-FTP, pairs in metal foil and braid shielding CPR: Eca Length: 1000 m Color: black Jacket: PE Structure: 4 x 2 AWG 23/1, solid twisted pair |
