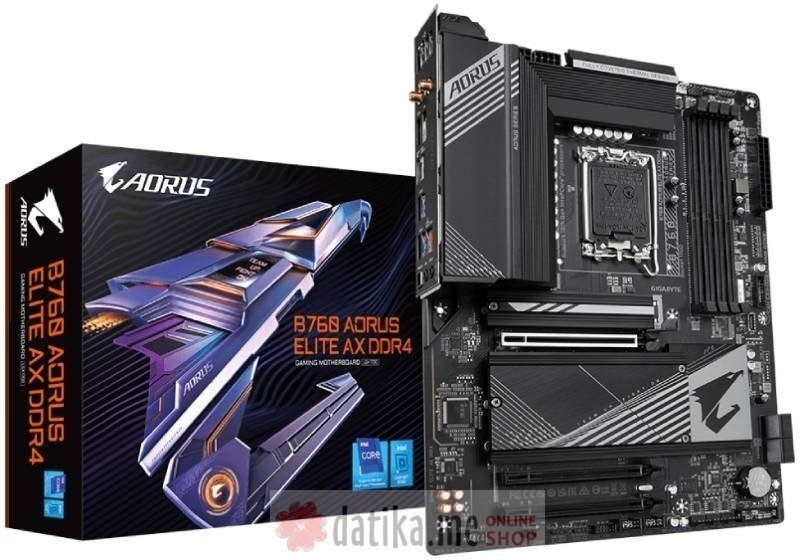

Gigabyte B760 A ELITE AXDDR4 rev. 1.x Maticna ploca
Gigabyte B760 A ELITE AXDDR4 rev. 1.x Maticna ploca
Articul: PLO03417
This product is not available for purchase
We don't have the information when the item will be available again, so we suggest you to have a look at the offer of similar products available on our web site: Motherboards
245 €
Gigabyte B760 A ELITE AXDDR4 rev. 1.x Maticna ploca in Montenegro only for 245 € in online store Datika. ✅ FREE delivery throughout Montenegro and pickup points: Podgorica, Bar, Budva, Tivat , Herceg Novi. We deliver Gigabyte B760 A ELITE AXDDR4 rev. 1.x Maticna ploca in 1-2 business days. All the relevant information about Gigabyte B760 A ELITE AXDDR4 rev. 1.x Maticna ploca on our web site.
| Originalni proizvodi | Proizvod je uvezen u Crnu Goru od strane proizvođača ili ovlašćenog distributera brenda. |
| Garancija (Warranty) | 24 months (2 years) |
| Brand | Gigabyte |
| Procesorsko ležište (socket) | Intel® 1700 |
| Čipset | Intel® B760 |
| Maksimalna ukupna memorija | 128GB |
| Tip memorije | DDR4 |
| Memorijski slotovi | 4x DDR4 |
| Opis memorije |
Podržane memorije 2.133MHz, 2.400MHz, 2.666MHz, 2.933MHz, 3.000MHz, 3.200MHz, 3.300Mhz (O.C.), 3.333Mhz (O.C.), 3.400Mhz (O.C.), 3.466Mhz (O.C.), 3.600Mhz (O.C.), 3.666Mhz (O.C.), 3.733Mhz (O.C.), 3.800Mhz (O.C.), 3.866Mhz (O.C.), 4.000Mhz, 4.133Mhz |
| PCI Express x16 slot | 1 x PCI Express 4.0 (x16 mode), 2x PCI Express 3.0 (x1 mode) |
| SATA priključci (ukupno) | 1 x M.2 Socket 3, 4 |
| SATA priključci | 2x M.2, 4 x SATA 6Gb/s |
| Audio |
Broj kanala 8 (7.1) Model Realtek Napomena High Definition, Podrška za S/PDIF izlaz |
| Ukupno USB priključaka | 10 |
| USB 2.0 priključci | 4 |
| USB 3.1 priključci | 1 (Tip C) |
| USB 3.2 priključci | 1 (Tip A) Gen2, 1 (Tip C) Gen2, 4 (Tip A) Gen1 |
| Back I/O Ports |
DisplayPort priključci 1x DisplayPort HDMI priključci 1 Ukupno USB priključaka 10 Ukupno USB-C priključaka 1 USB 3.2 priključci 1 (Tip A) Gen2, 1 (Tip C) Gen2, 4 (Tip A) Gen1 USB 2.0 priključci 4 RJ-45 (LAN) 1 Audio 1x S/PDIF optički, 2x 3.5mm Ostali priključci 2 x SMA antenna connectors (2T2R) |
| Internal I/O Ports |
aponski priključci 1 x 24 pin ATX Power Connector, 1 x 4-pin ATX 12V power connector, 1 x 8-pin ATX 12V power connector USB 3.2 1 (Tip A) Gen1 Header, 1 (Tip C) Gen2 Header USB 2.0 2 Audio 1x Front panel audio, 1x Front panel header Ostali priključci 1 x Clear CMOS button, 1 x CPU/Water Pump Fan Connector (4-pin), 1 x Q-Flash Plus button, 1 x RGB LED strip header, 1 x Trusted Platform Module (TPM), 1x CPU Fan header, 3x M.2 Socket 3, 3x System Fan header, Reset taster Napomena Za iskorišćavanje određenih internih konektora potrebni su dodatni bracket-i ili priključci na kućištu |
| DisplayPort priključci | 1x DisplayPort |
| HDMI priključci | 1x HDMI |
| Wi-Fi | da |
| LAN | Realtek® |
| Žična mreža (LAN) | 10/100/1000/2500 Mbps (2.5GbE) |
| RAID | RAID 0, RAID 1, RAID 5, RAID 10 |
| Format | ATX |
| Ostalo |
Bluetooth verzija 5,3 Podržane tehnologije GIGABYTE Control Center, Norton Internet Security (OEM verzija), Q-Flash Plus, RGB Fusion, Smart Fan, UEFI Bios Dimenzije 305mm x 244mm |
