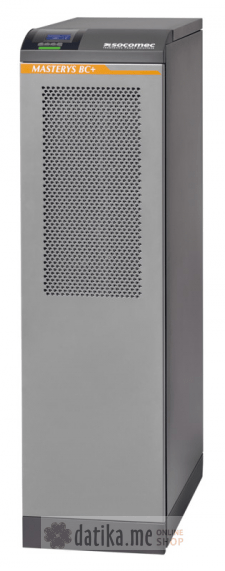

Socomec Masterys BC+ 10kVA UPS 3/3 400V PF=1, UGRAĐENA BATERIJA i zajednički ulaz

Articul: U4BC01CB00NY100

This product is not available for purchase

We don't have the information when the item will be available again, so we suggest you to have a look at the offer of similar products available on our web site: Voltage protection, UPS, AVR

9,045 €

The solution for

• SME IT networking / computer rooms
• Control rooms
• Emergency service
• Payment systems
• Public sector
• Security control

Advantages

A flexible and cost-effective solution

• A compact range of standard product references with a variety of add-on options to adapt to every customer’s site.
• Easy to configure for retrofit in existing installations.
• Equipped with manual bypass breaker in standard mode.

Long back-up time engineered-in

• Several optimised choices for standard internal battery configuration.
• Increased internal battery density for reduced footprint and simplified installation.
• Internal basic back-up time available up 80 kVA, without additional external battery cabinet.
• High recharging current option for very long back-up time.

Embedded digital technology

• Digital Native UPS generation.
• IoT ready device for access to connected services.
• Easy integration in LAN/WAN and virtual environments.

Fast and easy installation

• A wide range of UPS from 10 to 160 kVA with the same performance and functionality.
• Free eRULER online sizing tool to get dimensions and electrical information in advance before installation.
• Tutored UPS installation with eWIRE mobile app.
• Quickly get online product documentation by simply inputting the Serial Number.

Fast delivery

• “Fast track manufacturing” option available for urgent projects or last-minute requirements.
• Fast delivery even for highly customised configurations thanks to easily combined options.

User and environmentally friendly

• 25+ languages available in the mimic panel.
• Ergonomics designed to simplify usage.
• Anticipates eco-regulations and is RoHS compliant.
• Units provided with wheels for easy positioning.

Originalni proizvodi	Proizvod je uvezen u Crnu Goru od strane proizvođača ili ovlašćenog distributera brenda.
Garancija (Warranty)	24 months (2 years)
Brand	Socomec
Režim rada	Double-conversion (Online)
Snaga(VA)	10000
Voltaža	od 240 V do 480 V
Frequency	50/60 Hz
Priključci/Slotovi	Communication features • 3.5” multilanguage graphic display. • 2 slots for communication options. • USB port to download log file. • Ethernet port for service purpose.
Dodatne funkcije	Rated voltage 400 V 3ph+N (3 wire input also available on demand) System features • Dual input mains (above 20 kVA). • Internal maintenance bypass switch. • Output switch breaker. • Auxiliary mains switch breaker. • Backfeed protection: detection circuit. • Power walk-in ramp for excellent compliance with generators (except 10-20 kVA compact). • Normal life internal battery
Dimenzije	444x800x1400 mm
Nivo buke	60 dBA
