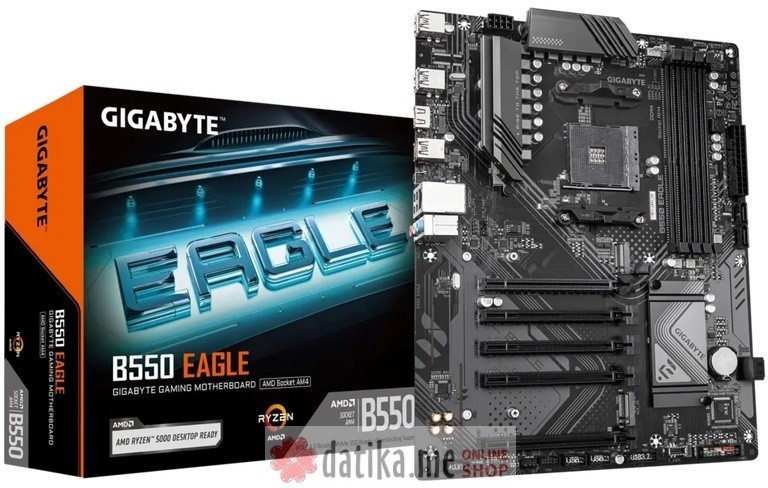

Gigabyte B550 EAGLE
Gigabyte B550 EAGLE
Kako kupiti?
Samo putem jednostavnog online poručivanja.
Sve proizvode dostupne za poručivanje imamo na raspolaganju
Dostava
nakon poručivanja online i potvrde operatera:
Kategorije: Matične ploče
Key Features
- AMD Socket AM4 : Supports AMD Ryzen™ 5000 / 4000 / 3000 Series Processors
- Digital twin 10+3 phases VRM solution
- Dual Channel DDR4 : 4*DIMMs
- EZ-Latch : PCIe slots with Quick Release Design
- Ultra-Fast Storage : 2*M.2 slots, including PCIe 4.0 x1
- Efficient Thermal : VRM Thermal Armor Advanced
- Fast Networking : GbE LAN
- Extended Connectivity : HDMI
- PCIe UD Slot : PCIe 4.0 x16 slots with 10X strength for graphics card & Better Heat dissipation effect
| Garancija (Warranty) | 36 mjeseci (3 godine) |
| Brand | Gigabyte |
| Procesorsko ležište (socket) | AMD® AM4 |
| Čipset | AMD B550 |
| Maksimalna ukupna memorija | 128GB |
| Tip memorije | DDR4 |
| Memorijski slotovi | 4x DDR4 |
| Opis memorije | Support for DDR4 3200/2933/2667/2400/2133 MT/s memory modules |
| Grafika | Integrisani graficki procesor |
| PCI Express x16 slot | 1 x PCI Express 4.0 (x16 mode), 4x PCI Express 3.0 (x1 mode) |
| SATA priključci | 4x SATA III, 2x M.2 |
| Audio |
Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. |
| Back I/O Ports |
4 x USB 2.0/1.1 ports 1 x HDMI port (Note) 1 x USB 3.2 Gen 2 Type-A (Note)/USB 3.2 Gen 1 port (red) 1 x USB Type-C® port, with USB 3.2 Gen 1 support 1 x Q-Flash Plus button 1 x RJ-45 port 2 x USB 3.2 Gen 1 ports 3 x audio jacks (Note) Actual support may vary by CPU. |
| Internal I/O Ports |
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x Clear CMOS jumper |
| LAN | Realtek® GbE LAN chip (1 Gbps/100 Gbps/10 Mbps) |
| Žična mreža (LAN) | 10/100/1.000Mbps (Gigabit ethernet) |
| RAID | RAID 0, RAID 1, RAID 10 |
| Format | ATX |
| Ostalo |
30.5cm x 24.4cm Operating System Support for Windows 11 64-bit Support for Windows 10 64-bit |
