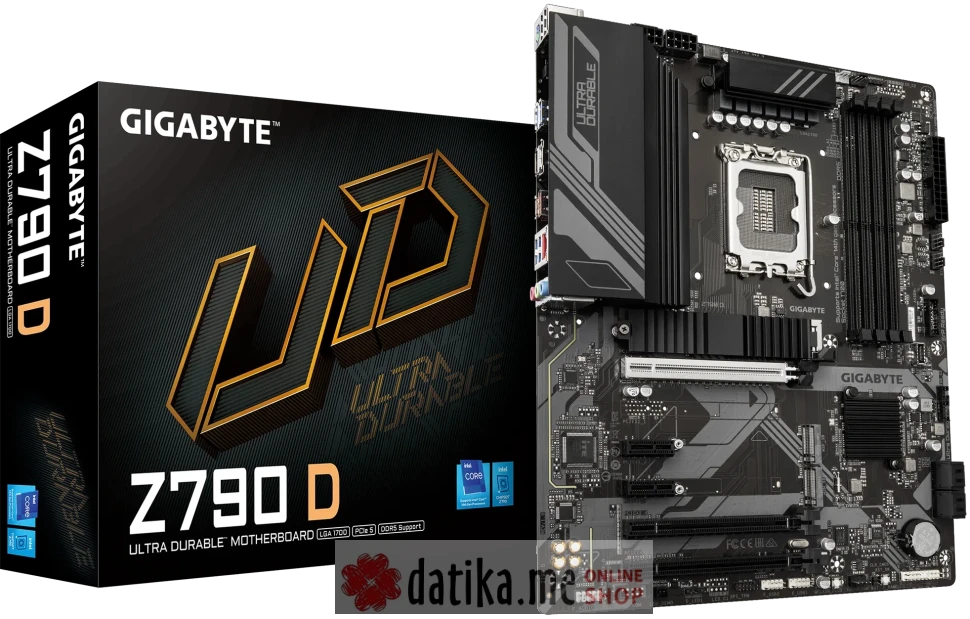

GIGABYTE Z790 D (rev. 1.0)
GIGABYTE Z790 D (rev. 1.0)
Kako kupiti?
Samo putem jednostavnog online poručivanja ovdje na portalu.
Sve proizvode dostupne za poručivanje imamo na raspolaganju
Dostava
nakon poručivanja online i potvrde operatera:
Kategorije: Matične ploče
Z790 D
- Supports Intel® Core™ 14th/ 13th /12th processors
- Unparalleled Performance：Twin 12*+1+１ Phases Digital VRM Solution
- Dual Channel DDR5：4*DIMMs with XMP 3.0 Memory Module Support
- Next Generation Storage：3*PCIe 4.0 x4 M.2 Connectors
- Advanced Thermal Design & M.2 Thermal Guard: To Ensure VRM Power Stability & M.2 SSD Performance
- EZ-Latch：PCIe 4.0x16 Slot with Quick Release Design
- Fast Networks：2.5GbE LAN
- Extended Connectivity：DP, HDMI, Rear USB-C® 10Gb/s
- Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card * 6+6 phases parallel power design
| Garancija (Warranty) | 24 mjeseci (2 godine) |
| Brand | Gigabyte |
| Procesorsko ležište (socket) | Intel® 1700 |
| Čipset | Intel® Z790 |
| Maksimalna ukupna memorija | 256GB |
| Tip memorije | DDR5 |
| Memorijski slotovi | 4xDDR5 |
| Opis memorije | DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600 / 5400 / 5200/ 4800/4400 MT/s memory modules |
| Grafika | Integrisani graficki procesor |
| PCI Express x16 slot | 1x PCI Express 5.0 (x16 mode), 1x PCI Express 4.0 (x4 mode), 1x PCI Express 3.0 (x1 mode) |
| PCI Express x1 slot | 2x PCI Express 3.0 |
| SATA priključci | 4x SATA III, 3 x M.2 |
| Audio |
Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out |
| Back I/O Ports |
1 x PS/2 keyboard/mouse port 1 x USB Type-C® port, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2 Type-A port (red) 4 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x HDMI port 1 x DisplayPort 1 x RJ-45 port 3 x audio jacks |
| Internal I/O Ports |
1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB Type-C® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt™ add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x reset button 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Žična mreža (LAN) | 10/100/1000/2500 Mbps (2.5GbE) |
| RAID | RAID 0, RAID 1, RAID 5, RAID 10 |
| Format | ATX |
| Ostalo |
Operating System Support for Windows 11 64-bit Support for Windows 10 64-bit Form Factor ATX Form Factor; 30.5cm x 24.4cm |
