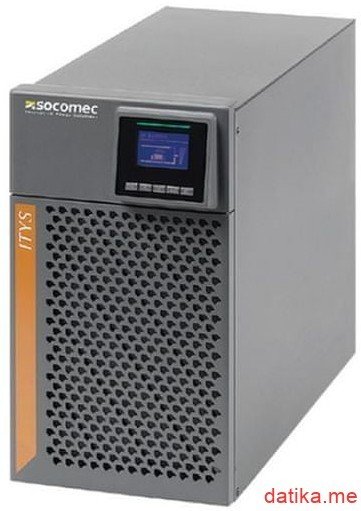

Socomec ITY3-TW100B 10000VA/10000W UPS
Socomec ITY3-TW100B 10000VA/10000W UPS
Kategorije: Zaštita napona, UPS, AVR
The solution for
• Professional workstations
• Server and corporate networks
• Control room
• Industrial automation
• Security systems
• Telecom systems
Advantages
Robust and easy to install
• Compact tower UPS system saves space in the operating environment.
• Quick and simple installation: no configuration necessary on first startup.
• Easy connections via IEC 320 sockets or terminals.
• Wide input voltage tolerance limits the switchovers to battery mode prolonging the battery life.
• Wide operating ambient temperature up to 45°C.
• Single and three-phase input with automatic configuration (8-10 kVA).
High protection and availability
• True online double conversion technology (VFI) assures high availability and total load protection.
• Compatible with different applications, operating environments and generator sets.
• Automatic bypass supplies the loads in the event of overloads or faults.
• Manual bypass for periodic or emergency maintenance.
• Standard Over Voltage Control Device (OVCD) protects the UPS and the load from dangerous mains peak-voltages.
Certified product
• Safety compliance certified by TÜV.
• Performance tested and verified by third independent laboratory.
Wide battery configurability
• Modular battery extension flexibility enables limitless autonomy configuration.
• Hot-swap modular battery extension increases back-up times even after installation according to the load criticality to be supplied.
• Modular battery extension enables lModels with integrated powerful battery charger:
- ensure constant and reliable operation using external high capacity batteries.
- provide power supply continuity during long outages.
- assure a fast recharging.
| Garancija (Warranty) | 24 mjeseci (2 godine) |
| Brand | Socomec |
| Režim rada | Double-conversion (Online) |
| Snaga(W) | 10000 |
| Snaga(VA) | 10000 |
| Ulazni napon | 230 V (1/1) 110÷276 V; (160÷276 V @100% load), 40-70 Hz (50/60 Hz +/-5% Auto-Selectable) |
| Izlazni napon | 220 / 230 / 240 V (± 1 %), 50/60 Hz (± 0.1 Hz in battery mode) |
| Baterija | sealed lead-acid maintenance free - expected life 3 / 5 years, 192 V DC, Back-up time 7 min, Battery charger 12 A |
| Priključci/Slotovi |
Connections terminals RS232 - USB - Dry contact Ethernet adapter NET VISION (TCP / IP & SNMP) optional card |
| Zaštita | Overload up to 105% continuously; 125% x 10 min; 150% x 30 sec |
| Dodatne funkcije | Input /output 1/1 |
| Dimenzije | 225 x 416 x 589 mm |
| Masa | 61 kg |
