ASUS TUF GAMING B760M-PLUS
ASUS TUF GAMING B760M-PLUS
Categories: Motherboards

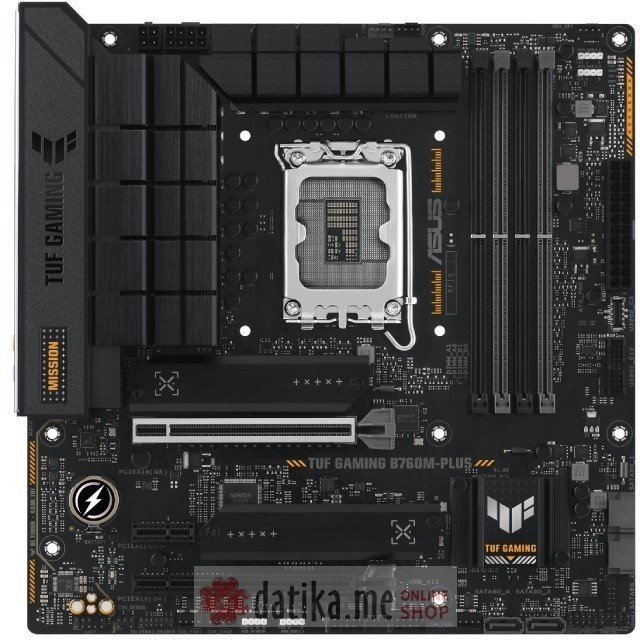

TUF GAMING B760M-PLUS
TUF GAMING B760M-PLUS takes all the essential elements of the latest Intel® processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. Aesthetically, this model incorporates an embossed nameplate and geometric design elements to reflect the dependability and stability that defines the TUF GAMING series.
| Originalni proizvodi | Proizvod je uvezen u Crnu Goru od strane proizvođača ili ovlašćenog distributera brenda. |
| Garancija (Warranty) | 24 months (2 years) |
| Brand | ASUS |
| Procesorsko ležište (socket) | Intel® 1700 |
| Čipset | Intel® B760 |
| Maksimalna ukupna memorija | 192GB |
| Tip memorije | DDR5 |
| Memorijski slotovi | 4xDDR5 |
| Opis memorije | 4.800Mhz, 5.000Mhz, 5.200Mhz, 5.400MHz, 5.600MHz, 5.800MHz (O.C.), 6.000MHz (O.C.), 6.200MHz (O.C.), 6.400MHz (O.C.), 6.600MHz (O.C.), 6.800MHz (O.C.), 7.000MHz (O.C.), 7.200MHz+ (O.C.) |
| PCI Express x16 slot | 1x PCI Express 4.0, 1x PCI Express 5.0 |
| PCI Express x1 slot | 1x PCI Express 4.0 |
| SATA priključci (ukupno) | 4 |
| SATA priključci | 2x M.2, 4 x SATA 6Gb/s |
| Audio |
Model Realtek Napomena Audio Shielding, Dedicated audio PCB layers, Front Panel Jack-retasking, Jack-detection, Multi-streaming, Premium audio capacitors, Supports up to 24-Bit/192 kHz playback |
| Ukupno USB priključaka | 8 |
| USB 2.0 priključci | 2 |
| USB 3.1 priključci | 1 (Tip C) |
| USB 3.2 priključci | 1 (Tip C) Gen2x2, 2 (Tip A) Gen2, 3 (Tip A) Gen1 |
| Back I/O Ports |
DisplayPort priključci 1x DisplayPort HDMI priključci 1 Ukupno USB priključaka 8 Ukupno USB-C priključaka 1 USB 3.2 priključci 1 (Tip C) Gen2x2, 2 (Tip A) Gen2, 3 (Tip A) Gen1 USB 2.0 priključci 2 (Tip A) RJ-45 (LAN) 1 Audio 5x 3.5mm Ostali priključci 1 x optical S/PDIF |
| Internal I/O Ports |
Naponski priključci 1 x 24 pin Main Power connector, 1x 4 pin 12V Power Connector, 1x 8 pin 12V Power Connector USB 3.2 1 (podrška za 2 USB 3.2 Gen 1 porta), 1 (podrška za USB-C port) USB 2.0 2 (podrška za 4 USB 2.0 porta) Ostali priključci 1 x 20-3 pin System Panel header with Chassis intrude function, 1 x 4-pin AIO Pump header, 1 x 4-pin CPU Fan header, 1 x 4-pin CPU OPT Fan header, 1 x AURA RGB header, 1 x Clear CMOS header, 1 x front panel audio header, 1 x Thunderbolt™ (USB4®) header, 2 x M.2 slots, 3 x Addressable Gen 2 headers, 3x Chassis Fan connector (4-pin), 4 x SATA 6Gb/s Napomena Za iskorišćavanje određenih internih konektora potrebni su dodatni bracket-i ili priključci na kućištu |
| DisplayPort priključci | 1x DisplayPort |
| HDMI priključci | 1x HDMI |
| LAN | 1x Realtek 2.5Gb Ethernet |
| RAID | RAID 0, RAID 1, RAID 5, RAID 10 |
| Format | microATX |
| Ostalo |
Podržane tehnologije AI Noise Cancelation, AURA Creator, DIGI+VRM, DTS Audio Processing, ESD Guards, Fan Xpert 2+, Overvoltage Protection, PC Cleaner, ProCool, TUF LANGuard, UEFI Bios Dimenzije 244mm x 244mm Fiksirajući otvori 8 Pakovanje 2x SATA kabl Ostale osobine Dual Channel, OptiMem II, Podrška za Extreme Memory Profile (XMP), Podrška za non-ECC UDIMM memory, Podrška za Unbuffered ECC memoriju |
