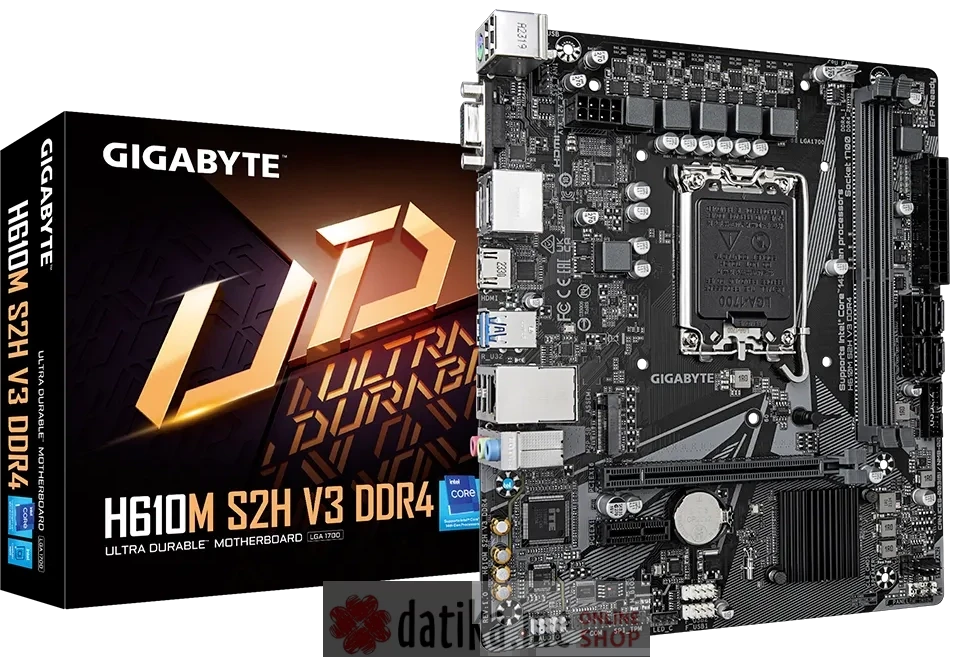

Gigabyte H610M S2H V3 DDR4
Gigabyte H610M S2H V3 DDR4
How to buy?
You can only make a purchase online by clicking the "Add to cart" or "Buy now" button.
All products available for ordering - we have them in stock.
Delivery
is made according to the following schedule, after ordering and confirmation by the operator:
Categories: Motherboards
Intel® H610 Motherboard with 4+1+1 Hybrid Phases Digital VRM Design, PCIe 4.0* Design, Gen3 x4 M.2, 2*DisplayPort / HDMI / D-Sub Ports for Multiple Display , Anti-Sulfur Resistor, Smart Fan 6
- Supports Intel® Core™ 14th/ 13th /12th processors
- Dual Channel Non-ECC Unbuffered DDR5, 2 DIMMs
- 4+1+1 Hybrid Digital VRM Design
- GbE LAN with Bandwidth Management
- NVMe PCIe 3.0 x4 M.2
- 2*DisplayPort / HDMI / D-Sub Ports for Multiple Display
- High Quality Audio Capacitors and Audio Noise Guard
- Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
- GIGABYTE APP Center, Simple and Easy Use
- Anti-Sulfur Resistors Design
* Actual support may vary by CPU.
| Garancija (Warranty) | 36 months (3 years) |
| Brand | Gigabyte |
| Procesorsko ležište (socket) | Intel® 1700 |
| Čipset | Intel® H610 |
| Maksimalna ukupna memorija | 64GB |
| Tip memorije | DDR4 |
| Memorijski slotovi | 2x DDR4 |
| Opis memorije | Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s |
| Grafika | Integrisani graficki procesor |
| PCI Express x16 slot | 1 x PCI Express 4.0 (x16 mode) |
| PCI Express x1 slot | 1x PCI Express 3.0 |
| SATA priključci | 4x SATA III, 1x M.2 |
| Audio |
Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. |
| Back I/O Ports |
1 x PS/2 keyboard/mouse port 1 x D-Sub port 2 x DisplayPorts 1 x HDMI port 2 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks |
| Internal I/O Ports |
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x RGB LED strip header 1 x front panel header 1 x front panel audio header 1 x speaker header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only) 1 x serial port header 1 x Clear CMOS jumper 1 x chassis intrusion header |
| LAN | Realtek® GbE LAN chip (1 Gbps/100 Gbps/10 Mbps) |
| Žična mreža (LAN) | 10/100/1.000Mbps (Gigabit ethernet) |
| Format | microATX |
| Ostalo |
I/O Controller iTE® I/O Controller Chip Operating System Support for Windows 11 64-bit Support for Windows 10 64-bit Form Factor Micro ATX Form Factor; 22.3cm x 19.3cm |
