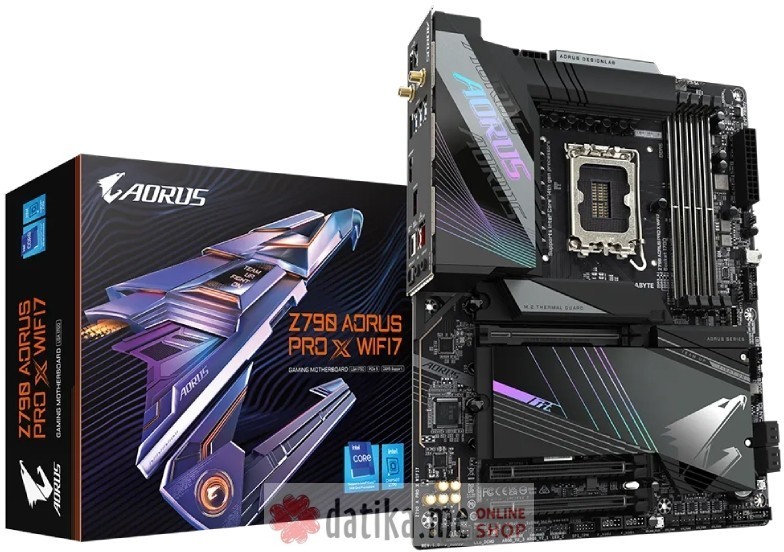

GIGABYTE Z790 AORUS PRO X WIFI7
GIGABYTE Z790 AORUS PRO X WIFI7
How to buy?
You can only make a purchase online by clicking the "Add to cart" or "Buy now" button.
All products available for ordering - we have them in stock.
Delivery
is made according to the following schedule, after ordering and confirmation by the operator:
Categories: Motherboards
Key Features
- Supports Intel® Core™ 14th and 13th processors
- Digital twin 18+1+2 phases VRM solution
- Dual Channel DDR5：4*DIMMs with XMP 3.0 memory module support
- PCIe UD Slot X： PCIe 5.0 x16 slot with 10X strength for graphics card
- EZ-Latch Click：M.2 heatsinks with screwless design
- EZ-Latch Plus：M.2 slots with quick release design
- Sensor Panel Link：Onboard video port for hassle-free in-chassis panel setup
- UC BIOS：User-Centred intuitive UX with Quick Access function
- Ultra-Fast Storage：5*M.2 slots, including 1* PCIe 5.0 x4
- Efficient Overall Thermal：VRM Thermal Armor Advanced & M.2 Thermal Guard XL
- Fast Networking：5GbE LAN & Wi-Fi 7 with Ultra-high gain antenna
- Extended Connectivity：HDMI, Front & Rear USB-C® 20Gb/s
- High-Res Audio：ALC1220 & Audiophile Grade Capacitors
| Garancija (Warranty) | 36 months (3 years) |
| Brand | Gigabyte |
| Procesorsko ležište (socket) | Intel® 1700 |
| Čipset | Intel® Z790 |
| Maksimalna ukupna memorija | 256GB |
| Tip memorije | DDR5 |
| Memorijski slotovi | 4xDDR5 |
| Opis memorije | DDR5 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 40 |
| Grafika | Integrisani graficki procesor |
| PCI Express x16 slot | 1x PCI Express 3.0 (x4 mode), 1x PCI Express 5.0 (x16 mode), 1x PCI Express 4.0 (x4 mode) |
| SATA priključci | 4x SATA III, 5 x M.2 |
| Audio |
Realtek® ALC1220-VB CODEC * The back panel line out jack supports DSD audio. High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out |
| Back I/O Ports |
2 x USB 2.0/1.1 ports 2 x SMA antenna connectors (2T2R) 4 x USB 3.2 Gen 1 ports 1 x DisplayPort In port (Note) 1 x HDMI port 2 x USB 3.2 Gen 2 Type-A ports (red) 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks |
| Internal I/O Ports |
1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 4 x system fan headers 2 x system fan/water cooling pump headers 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 5 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support 1 x USB Type-C® port (DisplayPort), with USB 2.0 support (Only available with the Intel® HD Graphics Processors.) 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x noise detection header 2 x Thunderbolt™ add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x Q-Flash Plus button 1 x reset button 1 x reset jumper 2 x temperature sensor headers 1 x Clear CMOS jumper |
| Wi-Fi | da |
| LAN | Realtek® 5GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) |
| RAID | RAID 0, RAID 1, RAID 5, RAID 10 |
| Format | ATX |
| Ostalo |
30.5cm x 24.4cm Support for Windows 11 64-bit Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup Intel® Wi-Fi 7 BE200 (For PCB rev. 1.0) - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11be 320MHz wireless standard (Actual data rate may vary depending on environment and equipment.) Note: Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10) Wi-Fi 7 channels on 6GHz band availability depends on individual country's regulations. |
