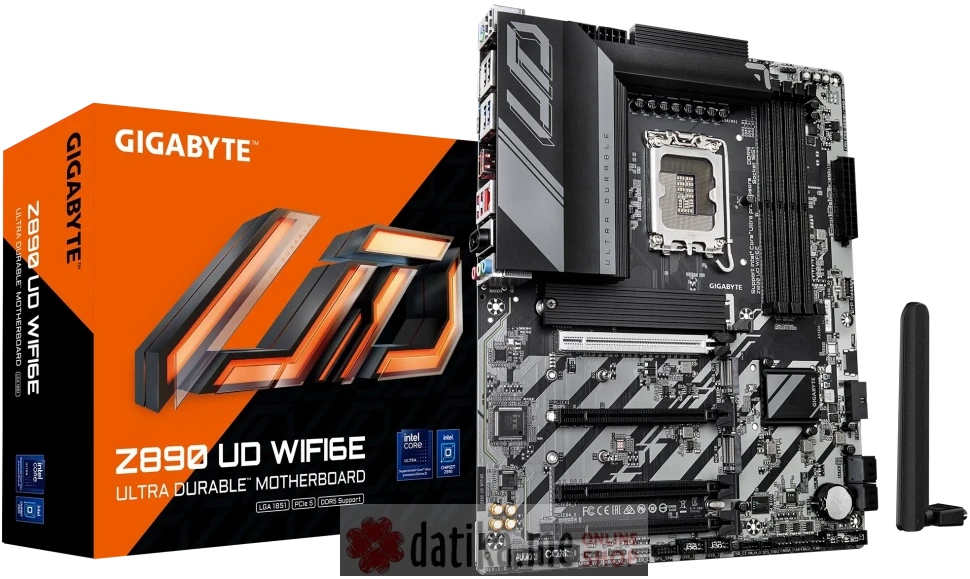

Gigabyte Z890 UD WIFI6E
Gigabyte Z890 UD WIFI6E
How to buy?
You can only make a purchase online by clicking the "Add to cart" or "Buy now" button.
All products available for ordering - we have them in stock.
Delivery
is made according to the following schedule, after ordering and confirmation by the operator:
Categories: Motherboards
Key Features
- Supports Intel® Core™ Ultra processors (Series 2)
- Digital twin 12+1+2 phases VRM solution
- D5 Bionic Corsa for Infinite Memory Performance
- AI Perfdrive : Provides optimal and customized BIOS preset profile for users
- Premium Compatibility : 4*DDR5 with XMP Memory Module Support
- WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
- EZ-Latch : PCIe x16 Slot with Quick Release Design
- Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
- New Power Monitor in HWinfo for real-time monitoring on CPU power phases
- Ultra-Fast Storage : 3*M.2 slots, including 1* PCIe 5.0 x4
- Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard
- Fast Networking : 2.5GbE LAN & Wi-Fi 6E 802.11ax
- Extended Connectivity : USB4 Type-C with DP-Alt, DisplayPort
| Garancija (Warranty) | 36 months (3 years) |
| Brand | Gigabyte |
| Procesorsko ležište (socket) | Intel® 1851 |
| Čipset | Intel® Z890 |
| Maksimalna ukupna memorija | 256GB |
| Tip memorije | DDR5 |
| Memorijski slotovi | 4xDDR5 |
| Opis memorije | Support for DDR5 9200(O.C) / 9066(O.C) / 8933(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 600 |
| Grafika | Integrisani graficki procesor |
| PCI Express x16 slot | 1x PCI Express 5.0 (x16 mode), 2x PCI Express 4.0 (x4 mode), 1x PCI Express 4.0 (x1 mode) |
| SATA priključci | 4x SATA III, 3 x M.2 |
| Audio |
Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. |
| Back I/O Ports |
4 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 1 x DisplayPort (Note) 4 x USB 3.2 Gen 1 ports 1 x USB4® USB Type-C® port (DisplayPort (Note)) 1 x USB 3.2 Gen 2 Type-A port (red) 1 x RJ-45 port 2 x SMA antenna connectors (2T2R) 3 x audio jacks (Note) Actual support may vary by CPU. |
| Internal I/O Ports |
1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 2 x system fan headers 2 x system fan/water cooling pump headers 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt™ add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only) 1 x serial port header 1 x power button 1 x reset button 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Žična mreža (LAN) | 10/100/1000/2500 Mbps (2.5GbE) |
| RAID | RAID 0, RAID 1, RAID 5, RAID 10 |
| Format | ATX |
| Ostalo |
I/O Controller iTE® I/O Controller Chip Operating System Support for Windows 11 64-bit Form Factor ATX Form Factor; 30.5cm x 24.4cm |
