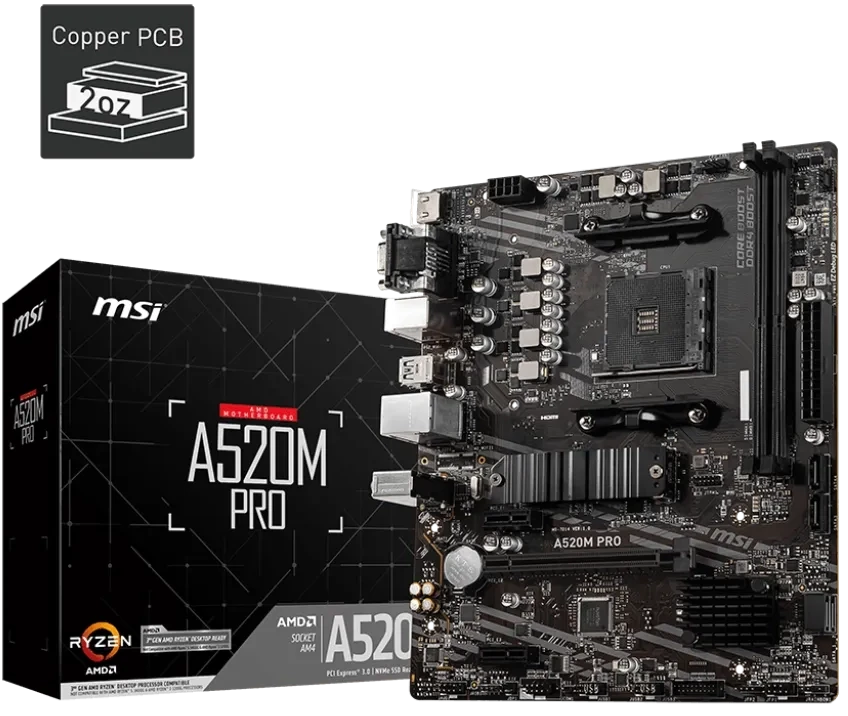

A520M PRO
- Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series and 3000 G-Series processors
- Supports DDR4 Memory, up to 4600(OC) MHz
- Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs
- M.2 Shield Frozr: Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster
- Core Boost: With premium layout and digital power design to support more cores and provide better performance
- DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability
- 2oz Thickened Copper PCB: An enhanced PCB design improves heat dissipation and performance reliability
- Audio Boost: Reward your ears with studio grade sound quality
- Dragon Center: A brand new software which integrates all MSI exclusive tools with user friendly user interface
| Garancija (Warranty) | 24 months (2 years) |
| Brand | MSI |
| Procesorsko ležište (socket) | AMD® AM4 |
| Čipset | AMD A520 |
| Maksimalna ukupna memorija | 64GB |
| Tip memorije | DDR4 |
| Memorijski slotovi | 2x DDR4 |
| Opis memorije | Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC |
| Grafika | Integrisani graficki procesor |
| PCI Express x16 slot | 1x PCI Express 3.0 |
| PCI Express x1 slot | 1x PCI Express 3.0 |
| SATA priključci | 4x SATA III, 1x M.2 |
| Audio |
Realtek® ALC892/ALC897 Codec 7.1-Channel High Definition Audio |
| Back I/O Ports |
VGA Keyboard / Mouse LAN port HDMI™ DisplayPort USB 2.0 Ports USB 3.2 Gen 1 5Gbps Type-A USB 3.2 Gen 1 5Gbps Type-A Audio Connectors |
| Internal I/O Ports |
1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 1x Serial port connector 1x M.2 slot (M-Key) 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin system fan connector 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x 4-pin RGB LED connector 1x 3-pin RAINBOW LED connector 1x TPM module connector 1x Clear CMOS jumper |
| LAN | 1x Realtek® RTL8111H LAN controller |
| Žična mreža (LAN) | 10/100/1.000Mbps (Gigabit ethernet) |
| RAID | RAID 0, RAID 1, RAID 10 |
| Format | microATX |
| Ostalo | Pakovanje I/O Shield, 2 x SATA 6Gb/s kabl |
