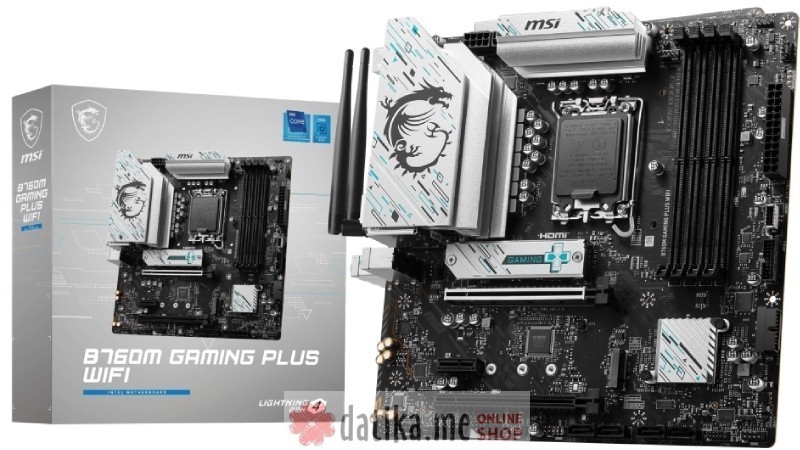

MSI B760M GAMING PLUS WIFI
How to buy?
You can only make a purchase online by clicking the "Add to cart" or "Buy now" button.
All products available for ordering - we have them in stock.
Delivery
is made according to the following schedule, after ordering and confirmation by the operator:
Categories: Motherboards
MSI B760M GAMING PLUS WIFI in Montenegro only for 190 € in online store Datika. ✅ FREE delivery throughout Montenegro and pickup points: Podgorica, Bar, Budva, Tivat , Herceg Novi. We deliver MSI B760M GAMING PLUS WIFI in 1-2 business days. All the relevant information about MSI B760M GAMING PLUS WIFI on our web site.
Garancija (Warranty) | 24 months (2 years) |
Brand | MSI |
Procesorsko ležište (socket) | Intel® 1700 |
Čipset | Intel® B760 |
Maksimalna ukupna memorija | 192GB |
Tip memorije | DDR5 |
Memorijski slotovi | 4xDDR5 |
Opis memorije | Podržane memorije 4.800Mhz, 5.000Mhz, 5.200Mhz, 5.400MHz, 5.600MHz, 5.800MHz (O.C.), 6.000MHz (O.C.), 6.200MHz (O.C.), 6.400MHz (O.C.), 6.600MHz (O.C.), 6.800MHz (O.C.) |
PCI Express x16 slot | 1 x PCI Express 4.0 (x16 mode), 1x PCI Express 4.0 (x4 mode) |
PCI Express x1 slot | 1x PCI Express 3.0 |
PCI slot | 3 |
SATA priključci | 2x M.2, 4x SATA III 6Gbps |
Audio |
Broj kanala 7.1 Model Realtek ALC897 Codec Napomena High Definition |
Ukupno USB priključaka | 6 |
USB 2.0 priključci | 2 |
USB 3.2 priključci | 2x USB 10Gbps (3.2 Gen 2), 2x USB 5Gbps (3.2 Gen 1) |
Back I/O Ports |
Broj DisplayPort priključaka 2 Broj HDMI priključaka 2 PS/2 1 (tastatura ili miš) Ukupno USB priključaka 6 USB-A priključci 2x USB 10Gbps (3.2 Gen 2), 2x USB 2.0, 2x USB 5Gbps (3.2 Gen 1) RJ-45 (LAN) 1 Audio 3x 3.5mm Ostali priključci Wi-Fi / Bluetooth |
Internal I/O Ports |
Naponski priključci 1x Power Connector (ATX_PWR), 2x Power Connector (CPU_PWR) USB-A 4 x podrška za 1 USB 5Gbps port USB-C 1 x podrška za 1 USB 5Gbps port Audio 1x Front panel audio Ostali priključci 1 x COM Port header, 1x Chassis Intrusion (JCI), 1x CPU Fan, 1x Pump Fan, 1x RGB LED connector (JRGB), 1x TPM pin header(Support TPM 2.0), 2x Addressable V2 RGB LED connector (JARGB_V2), 2x Front Panel (JFP), 2x System Fan Napomena Za iskorišćavanje određenih internih konektora potrebni su dodatni bracket-i ili priključci na kućištu |
DisplayPort priključci | 2x DisplayPort |
HDMI priključci | 2x HDMI |
PS2 | tastatura ili miš |
Wi-Fi | Intel® Wi-Fi 6E AX211 |
LAN | 2.5GBase-T (Gigabit) Model Dragon RTL8125BG |
Žična mreža (LAN) | 10/100/1000/2500 Mbps (2.5GbE) |
RAID | RAID 0, RAID 1, RAID 5, RAID 10 |
Format | microATX |
Ostalo |
Ostale osobine Dual Channel, Podrška za non-ECC UDIMM memory Dimenzije 243.84mm x 243.84mm Pakovanje I/O Shield, SATA kabl, Šrafovi, Wi-Fi antena Podržane tehnologije Audio Boost, Core Boost Bluetooth Da Bluetooth verzija 5.3 |
