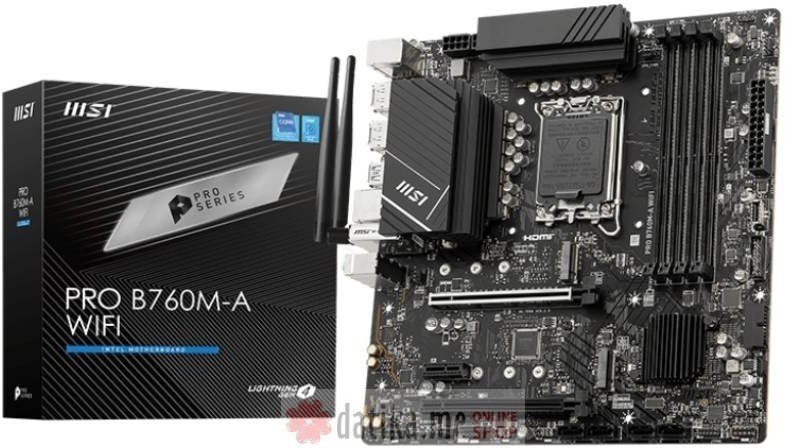

MSI PRO B760M-A WIFI Maticna ploca
MSI PRO B760M-A WIFI Maticna ploca
How to buy?
You can only make a purchase online by clicking the "Add to cart" or "Buy now" button.
All products available for ordering - we have them in stock.
Delivery
is made according to the following schedule, after ordering and confirmation by the operator:
Categories: Motherboards
MSI PRO B760M-A WIFI Maticna ploca in Montenegro only for 197 € in online store Datika. ✅ FREE delivery throughout Montenegro and pickup points: Podgorica, Bar, Budva, Tivat , Herceg Novi. We deliver MSI PRO B760M-A WIFI Maticna ploca in 1-2 business days. All the relevant information about MSI PRO B760M-A WIFI Maticna ploca on our web site.
| Garancija (Warranty) | 24 months (2 years) |
| Brand | MSI |
| Procesorsko ležište (socket) | Intel® 1700 |
| Čipset | Intel® B760 |
| Maksimalna ukupna memorija | 192GB |
| Tip memorije | DDR5 |
| Memorijski slotovi | 4xDDR5 |
| Opis memorije |
Podržane memorije 4.800Mhz, 5.000Mhz, 5.200Mhz, 5.400MHz, 5.600MHz, 5.800MHz (O.C.), 6.000MHz (O.C.), 6.200MHz (O.C.), 6.400MHz (O.C.), 6.600MHz (O.C.), 6.800MHz (O.C.) Ostale osobine Dvokanalni (Dual-channel) režim rada memorije, Podrška za Ext |
| PCI Express x16 slot | 2x PCI Express 4.0 |
| PCI Express x1 slot | 1x PCI Express 3.0 |
| PCI slot | 3 |
| SATA priključci (ukupno) | 4 |
| SATA priključci | 4x SATA III, 2x M.2 |
| Audio |
Broj kanala 8 (7.1) Model Realtek ALC897 Codec |
| Ukupno USB priključaka | 6 |
| USB 2.0 priključci | 2 |
| USB 3.2 priključci | 2 (Tip A) Gen1, 2 (Tip A) Gen2 |
| Back I/O Ports |
DisplayPort priključci 2x DisplayPort 1.4 HDMI priključci 2x HDMI 2.1 PS/2 1 (tastatura ili miš) Ukupno USB priključaka 6 USB 3.2 priključci 2 (Tip A) Gen1, 2 (Tip A) Gen2 USB 2.0 priključci 2 (Tip A) RJ-45 (LAN) 1 Audio 3x 3.5mm Ostali priključci 2x Wi-Fi antenna connectors |
| Internal I/O Ports |
Naponski priključci 1x Power Connector (ATX_PWR), 2x Power Connector (CPU_PWR) USB 3.2 1 (Tip C) Gen1, 4 (Tip A) Gen1 USB 2.0 4 Audio 1x Front panel audio Serijski port 1 Ostali priključci 1 x CPU fan header, 1x Chassis Intrusion (JCI), 1x Front Audio (JAUD), 1x Pump Fan, 1x RGB LED connector (JRGB), 1x TPM pin header(Support TPM 2.0), 2x Addressable V2 RGB LED connector (JARGB_V2), 2x Front Panel (JFP), 2x System Fan, 4 x EZ Debug LED Napomena Za iskorišćavanje određenih internih konektora potrebni su dodatni bracket-i ili priključci na kućištu |
| DisplayPort priključci | 2x DisplayPort 1.4 |
| HDMI priključci | 2x HDMI 2.1 |
| PS2 | tastatura ili miš |
| Wi-Fi | Intel® Wi-Fi 6E AX211 |
| LAN | Realtek® |
| Žična mreža (LAN) | 10/100/1000/2500 Mbps (2.5GbE) |
| RAID | RAID 0, RAID 1, RAID 5, RAID 10 |
| Format | microATX |
| Ostalo |
Napomena RAID 0, RAID 1 i RAID 10 podrška za SATA priključke Podržane tehnologije Audio Boost, VRM heatsink design Bluetooth verzija 5,3 Dimenzije 243.84mm x 243.84mm Fiksirajući otvori 8 Pakovanje 2x WiFi antene, SATA kabl |
